Desktop DMA series

Dynamic Mechanical Analyzers

DMA25 and DMA50 are “desktop” Dynamic Mechanical Analyzers offering a high force range and outstanding flexibility. From glass transition determination to immersed tests, they make powerful and very cost-effective thermomechanical testing platforms.

Assets

Force

From low levels ( /-0.001N) to high forces ( +/-25 Newtons for the DMA25 or +/-50 Newtons for the DMA50)

DMA25

Maximum force expandable to +/-50 Newtons for rigid materials or large specimens

Displacement

from /-1µm to /-3mm

Frequency

from 0.00001 Hz to 200 Hz

Temperature

from -150°C to 500°C

Analysis of specimens

With sizes representative of the material

Dynatest

Flexible and user-friendly Dynatest software including advanced control algorithms

Auto-tension mode

(coupled static/dynamic control) for films and 3-point bending modes

Multi-purpose thermal chamber

With window, allowing for gas atmosphere

Reversible frame

Immersed tests

Possible for all specimen holders and all stress modes at no extra cost

Humidity control capability

Easy to use

Reduced maintenance

Low price

Metravib DMA Desktop series

The outstanding flexibility of DMA25 and DMA50 Dynamic Mechanical Analyzers presents many assets.

Metravib Desktop series applications

DMA25 and DMA50 Dynamic Mechanical Analyzers for a broad range of applications

DMA and TMA testing

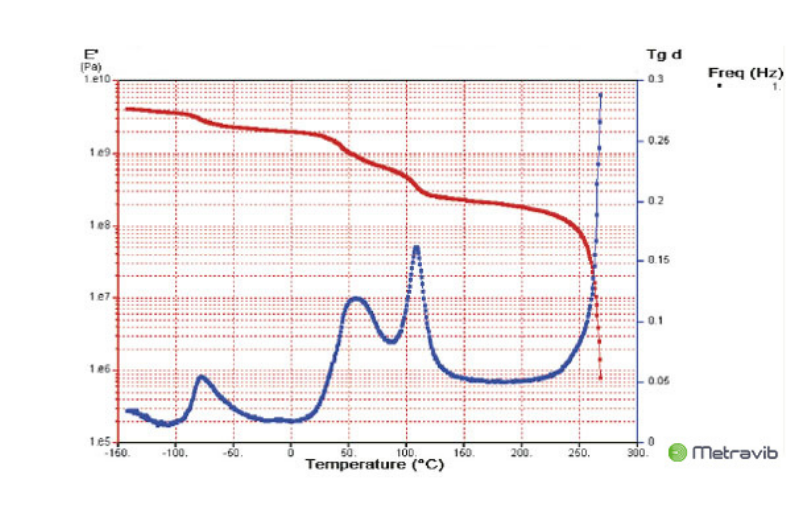

Determination of glass and secondary transitions
Static and quasi static testing: creep, stress relaxation, tension, compression, etc.
Particularly well suited to polymer and composite characterization
Tests on materials immersed in a liquid
Materials humidity dependence analysis
R&D / Quality Control / Education / Lab work

Download

DMA25 / DMA50
Brochure
